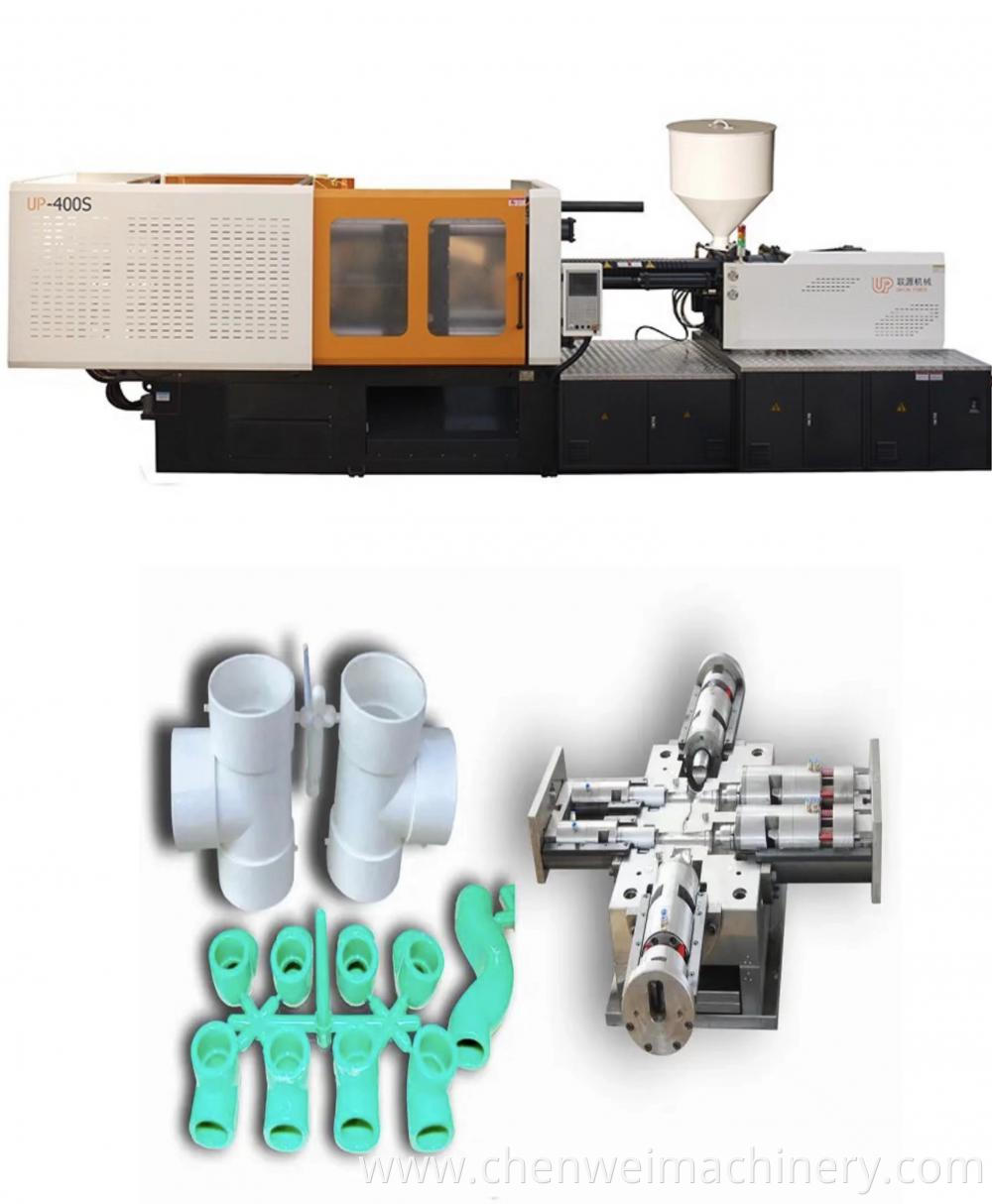

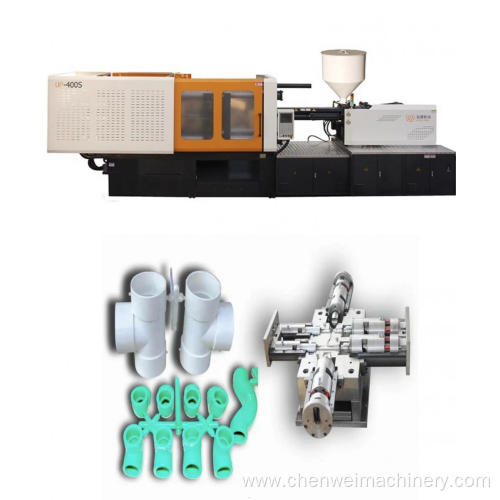

PVC tube pipe injection molding machine
PVC tube pipe injection molding machine
PVC tube pipe injection molding machine
PVC tube pipe injection molding machine

PVC tube pipe injection molding machine

Payment Type:L/C,T/T
Incoterm:FOB,CFR,CIF
Min. Order:1 Set/Sets
Transportation:Ocean,Land
Port:ningbo port
  • $25000-35000 /Set/Sets

25000~35000USD

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
  • Company Overview
  • Company Photos
  • Production Certification
Product Attributes

Model No.up-330

Brandchenwei machinery

Processing Plastic TypePpr

Eject PointsOther

Equipment TypeHydraulic

Tie Rod SpacingOther

Injection TypeInjection Blow Molding

Place Of OriginChina

Warranty Period1 Year

Core Selling PointCompetitive Price

Applicable IndustryHotels, Restaurant, Home Use

Out-of-warranty ServiceVideo Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)None

Showroom Location (in Which Countries Are There Sample Rooms Overseas)None

Marketing TypeOrdinary Product

Mechanical Test ReportProvided

Video Factory InspectionProvided

Core Component Warranty Period1 Year

Core ComponentsMotor

Packaging & Delivery
Selling Units: Set/Sets
Package Type: film packing and wooden box
Picture Example:
Download:
Product Description
Working principle of Standard Injection Molding Machine manufacturer

china standard Injection Molding Machine


There are two basic functions of the injection molding machine: heating the plastic to reach the melting state; Apply high pressure to the molten plastic to make it shoot out and fill the mold cavity. Its specific working principle:


Using the thermophysical properties of Plastic Injection Machine .the material is added into the barrel from the hopper. The outer part of the barrel is heated by a heating ring to melt the material. The barrel is equipped with a screw driven by an external power motor to rotate. Under the action of the screw, the material is transported and compacted forward along the spiral groove.

The material is gradually plasticized, melted and homogenized under the dual effects of external heating and screw shearing. When the screw rotates, the material will push the melted material to the head of the screw under the action of the screw slot friction and shear force. At the same time, the screw will retreat under the reaction of the material to form a storage space at the head of the screw and complete the plasticizing process.china Standard Injection Molding Machine

Then, under the action of the piston thrust of the injection cylinder, the screw injects the molten material in the storage chamber into the mold cavity through the nozzle at high speed and high pressure. After the molten material in the mold cavity is pressure-holding, cooled, solidified and shaped, the mold opens the mold under the action of the mold closing mechanism, and the shaped products are ejected from the mold through the ejection device.Standard Injection Molding Machine

Structural composition of Ce Standard Injection Molding Machine

Injection molding machine is usually composed of injection system, mold closing system, hydraulic transmission system, electrical control system, lubrication system, heating and cooling system, safety monitoring system, etc
5b3d30fdbba5e79cd12c38f78e3519314ad565cb81cd301c5615b5707e77d4016cf1caa8e6aa756adc8bd9160953a2b35bb5c9f411a6994351a454ade577861102742243365806ac267516791d7D47a50c0e59ebdcc21832a806a3a922256ee8d99786a5643cfebfee853396e

FAQ

1: Are you a trading company or a manufactory?

  We are a manufactory, we supply the factory price with good

  quality, welcome to visit !

2:Do you have QC or any safety standards for your plastic injection molding machine?

  yes,we have established a highly strict quality control department  to guanrantee good quality.

3:Why choose our plastic injection molding machine?

  High quality with competitive price

4::How about quality control in your factory?

  "Quality is first, Customers are friends".

5:Can you help us with the shipment of this machine ?

  Yes , with honor ,we have our special shipment company which

  already cooperate
